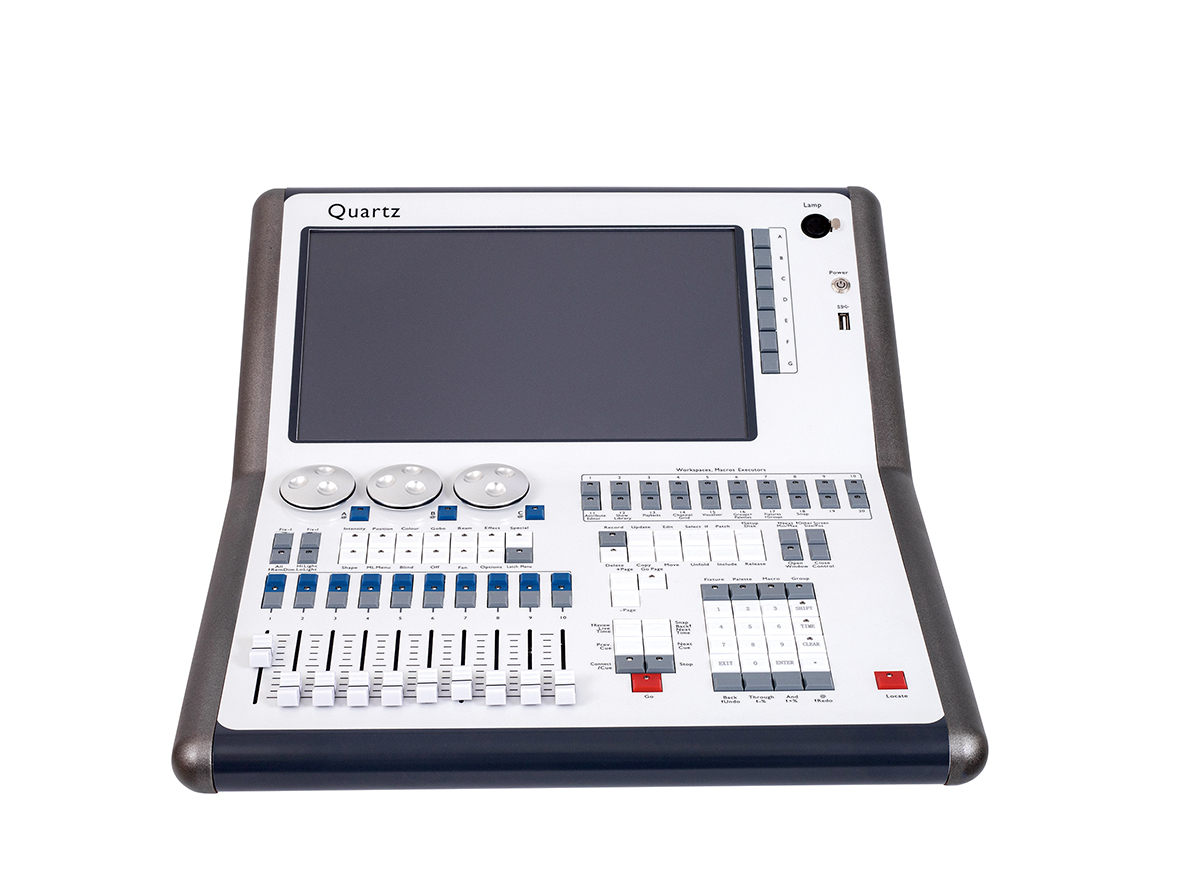

Quartz is the latest member of the Titan family. Boasting a compact size and a 14.1-inch high-brightness capacitive touch screen, it is the smallest full-featured console in the Titan lineup. With an overall width of 42.5 cm, Quartz is the ideal choice for lighting programming, touring shows, festival celebrations, bars and nightclubs alike. Inheriting all the excellent functions of the Titan system, Quartz enables you to program anytime, anywhere, at your will.

It fully supports the multi-user programming function of Titan V10. Of course, Quartz also serves as an ideal backup console, and can mutually back up with all Titan system consoles.

Technical Parameters

Intel Core i5 CPU, Kingston 120GB SSD, Samsung 4GB RAM

Built-in 4 DMX output ports with 2048 channels in total

Supports Art-net network output, expandable to 12 DMX universes via network

Supports Titan-net protocol, expandable to 64 DMX universes

10 mechanical page playback faders

20 custom macro function keys

Expandable with one Titan Wing (playback wing featuring 20 playback faders, 30 custom macro functions and USB power supply)

Supports headphone output

1 Gigabit Ethernet port, compatible with Art-net, Titan-net and Streaming ACN protocols

Compatible with show files from other Titan system consoles
